螺紋
Thread
|
編號
P/N
|

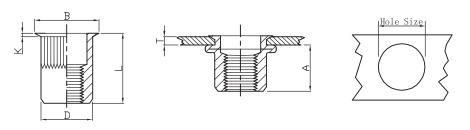

?T(GRIP RANGE) Min Max |
A Rer |
Hole Size +0.1 |
D +0.07 -0.1 |
B | K | L |
| M3 | RH-KB/SS-0315 RH-KB/SS-0325 |
0.5-1.5 1.5-2.5 |
5.0 6.2 |
5.0 | 4.9 | 6.0 | 0.5 | 9.0 11.5 |
| M4 | RH-KB/SS-0420 RH-KB/SS-0440 |
0.5-2.0 2.0-4.0 |
6.5 7.0 |
6.0 | 5.9 | 7.0 | 0.5 | 10.5 13.0 |
| M5 | RH-KB/SS-0520 RH-KB/SS-0540 |
0.5-2.0 2.0-4.0 |
7.2 | 7.0 | 6.9 | 8.0 | 0.5 | 11.5 13.0 |
| M6 | RH-KB/SS-0625 RH-KB/SS-0650 |
0.5-2.5 2.5-5.0 |
8.7 | 9.0 | 8.9 | 10.0 | 0.6 | 14.0 16.0 |
| M8 | RH-KB/SS-0830 RH-KB/SS-0850 |
0.5-3.0 3.0-5.0 |
10.5 | 11.0 | 10.9 | 12.0 | 0.65 | 16.5 19.5 |
| M10 | RH-KB/SS-1035 RH-KB/SS-1060 |
1.0-3.5 3.5-6.0 |
10.7 12.5 | 13.0 | 12.9 | 14.0 | 0.70 0.75 |
17.7 23.0 |
| M12 | RH-KB/SS-1240 RH-KB/SS-1260 |
1.0-4.0 4.0-6.5 |
16.2 | 16.0 | 15.9 | 17.6 | 0.8 | 24.2 27.0 |
