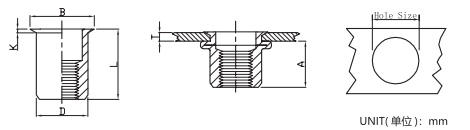

螺紋 Thread |
編號
P/N
|
T(GRIP RANGE) Min Max |
A Rer |
Hole Size ﹢0.1 0 |
D | B | K | L |
| M3 | RH-RB-0315 | 0.5-1.5 | 6.2 | 5.0 | 4.9 | 6.0 | 0.5 | 9.0 |
| M4 | RH-RB-0420 | 0.5-2.0 | 6.5 | 6.0 | 5.9 | 7.0 | 0.5 | 10.5 |
| RH-RB-0440 | 2.0-4.0 | 13.0 | ||||||
| M5 | RH-RB-0520 | 0.5-2.0 | 7.0 | 7.0 | 6.9 | 8.0 | 0.5 | 11.5 |
| RH-RB-0540 | 2.0-4.0 | 13.0 | ||||||
| M6 | RH-RB-0625 | 0.5-2.5 | 8.5 | 9.0 | 8.9 | 10.5 | 0.6 | 14.0 |
| RH-RB-0650 | 2.5-5.0 | 10.0 | 0.6 | 17.0 | ||||
| M8 | RH-RB-0830 | 0.5-3.0 | 10.0 | 11.0 | 10.9 | 12.0 | 0.65 | 16.5 |
| RH-RB-0850 | 3.0-5.0 | 18.5 | ||||||
| M10 | RH-RB-1030 | 0.5-3.0 | 13.0 | 13.0 | 12.9 | 14.1 | 0.7 | 17.7 |
| RH-RB-1055 | 3.0-5.5 | 21.0 | ||||||
| M10 | RH-RB-1030(12H) | 0.5-3.0 | 12.5 | 12.0 | 11.9 | 13.0 | 0.7 | 18.0 |
