English
|

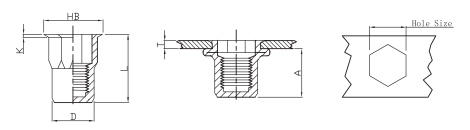

螺紋
Thread
|
編號(hào)
P/N
|
T(GRIP RANGE) Min Max |
A Rer |
Hole Size +0.1 0 |
D +0.07 -0.1 |
B | K | L |
| M3 | RHH-IHBC/SS-0315 RHH-IHBC/SS-0320 |
0.5-1.5 1.5-2.5 |
8.5 | 5.0 | 4.9 | 6.0 | 0.5 | 13.0 15.0 |
| M4 | RHH-IHBC/SS-0420 RHH-IHBC/SS-0440 |
0.5-2.0 2.0-4.0 |
11.5 | 6.0 | 5.9 | 7.0 | 0.5 | 15.5 17.5 |
| M5 | RHH-IHBC/SS-0525 RHH-IHBC/SS-0540 |
0.5-2.5 2.0-4.0 |
13.5 | 7.0 | 6.9 | 8.0 | 0.5 | 18.0 20.0 |
| M6 | RHH-IHBC/SS-0630 RHH-IHBC/SS-0650 |
0.5-3.5 3.5-5.0 |
15.8 | 9.0 | 8.9 | 10.0 | 0.6 | 21.5 23.0 |
| M8 | RHH-IHBC/SS-0835 RHH-IHBC/SS-0850 |
1.0-3.5 3.5-5.0 |
18.2 | 11.0 | 10.9 | 12.0 | 0.65 | 24.0 26.0 |
| M10 | RHH-IHBC/SS-1040 RHH-IHBC/SS-1050 |
1.0-4.0 3.5-5.0 |
23.2 | 13.0 | 12.9 | 14.5 | 0.75 | 30.5 33.0 |
