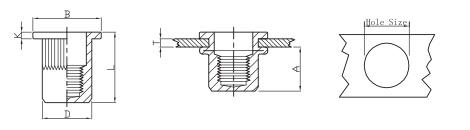

螺紋 Thread |
編號 P/N |
T(GRIP RANGE) |
A |
Hole Size |
D |
B |
K |
L |
|
M3 |
FH-KBC/SS-0315 |
0.5-1.5 |
8.0 |
6.0 |
5.9 |
8.0 |
0.8 |
13.0 |
|
M4 |
FH-KBC/SS-0420 |
0.5-2.0 |
11.8 |
6.0 |
5.9 |
9.0 |
0.8 |
16.0 |
|
M5 |
FH-KBC/SS-0525 |
0.5-2.5 |
12.0 |
7.0 |
6.9 |
10.0 |
1.0 |
17.0 |
|
M6 |
FH-KBC/SS-0630 |
0.5-3.0 |
12.7 |
9.0 |
8.9 |
12.3 |
1.3 |
19.2 |
|
M8 |
FH-KBC/SS-0835 |
1.0-3.5 |
14.2 |
11.0 |
10.9 |
15.0 |
1.5 |
21.5 |
|
M10 |
FH-KBC/SS-1040 |
1.0-4.0 |
18.0 |
13.0 |
12.9 |
17.0 |
1.6 |
27.0 |
|
M12 |
FH-KBC/SS-1240 |
1.0-4.0 4.0-6.0 |
29.5 |
16.0 |
15.9 |
23.0 |
1.8 |
30.0 |
