螺紋 Thread |
編號
P/N
|

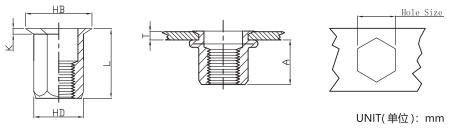

T(GRIP RANGE) Min Max |
A Rer |
Hole Size ﹢0.1 0 |
D | B | K | L |
| M3 | RHH-FHB-0325 | 0.5-1.5 | 5.0 | 5.0 | 4.9 | 6.0 | 0.5 | 8.5 |
| RHH-FHB-0340 | 1.5-3.0 | 10.5 | ||||||
| M4 | RHH-FHB-0425 | 0.5-2.5 | 6.7 | 6.0 | 5.9 | 7.0 | 0.5 | 11.0 |
| RHH-FHB-0450 | 2.5-5.0 | 13.5 | ||||||
| M5 | RHH-FHB-0530 | 0.5-3.0 | 9.0 | 7.0 | 6.9 | 8.0 | 0.5 | 14.5 |
| RHH-FHB-0550 | 3.0-5.0 | 16.0 | ||||||
| M6 | RHH-FHB-0635 | 1.0-3.5 | 10.0 | 9.0 | 8.9 | 10.0 | 0.6 | 16.0 |
| RHH-FHB-0660 | 3.5-6.0 | 18.0 | ||||||
| M8 | RHH-FHB-0840 | 1.0-4.0 | 11.5 | 11.0 | 10.9 | 12.0 | 0.65 | 18.0 |
| RHH-FHB-0860 | 4.0-6.0 | 20.0 | ||||||
| M10 | RHH-FHB-1035(12H) | 1.0-3.5 | 12.5 | 12.0 | 11.9 | 13.5 | 0.75 | 20.0 |
| RHH-FHB-1060(12H) | 3.5-6.0 | 14.5 | 23.5 | |||||
| M10 | RHH-FHB-1035 | 1.0-3.5 | 12.5 | 13.0 | 12.9 | 14.5 | 0.75 | 19.0 |
| RHH-FHB-1060 | 3.5-6.0 | 14.5 | 23.5 | |||||
| M12 | RHH-FHB-1240 | 1.0-4.0 | 15.5 | 16.0 | 15.9 | 17.5 | 1.0 | 25.0 |
| RHH-FHB-1260 | 4.0-7.0 | 28.0 |
