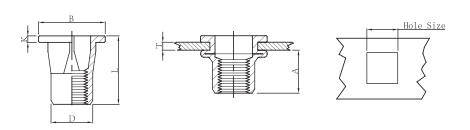

螺紋 Thread |
編號 P/N |
T(GRIP RANGE) |
A |
Hole Size |
D |
B |
K |
L |
|
M4 |
RHH-IHBC-0420 |
0.5-2.0 |
11.5 |
6.0 |
5.9 |
7.0 |
0.6 |
15.5 |
| RHH-IHBC-0440 | 2.0-4.0 | 18.0 | ||||||
|
M5 |
RHH-IHBC-0525 |
0.5-2.5 |
13.5 |
7.0 |
6.9 |
8.0 |
0.6 |
18.0 |
| RHH-IHBC-0545 | 2.5-4.5 | 23.0 | ||||||
|
M6 |
RHH-IHBC-0635 |
1.0-3.5 |
15.8 |
9.0 |
8.9 |
10.0 |
0.6 |
21.5 |
| RHH-IHBC-0650 | 3.5-5.5 | 23.5 | ||||||
|
M8 |
RHH-IHBC-0835 |
1.0-3.5 |
18.2 |
11.0 |
10.9 |
12.0 |
0.7 |
24.0 |
| RHH-IHBC-0855 | 3.5-5.5 | 25.0 | ||||||
|
M10 |
RHH-IHBC-1040 |
1.0-4.0 |
23.2 |
13.0 |
12.9 |
14.5 |
0.85 |
30.5 |
| RHH-IHBC-1060 | 4.0-6.0 | 30.5 | ||||||
|
M12 |
RHH-IHBC-1265 |
4.0-6.5 |
22.5 |
16.0 |
15.9 |
17.5 |
1.0 |
32.5 |
| RHH-IHBC-1285 | 6.5-8.5 | 35.0 |
