螺紋 Thread |
編號
P/N
|

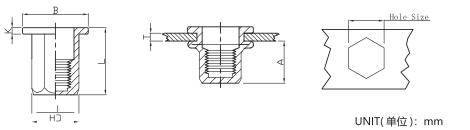

T(GRIP RANGE) Min Max |
A Rer |
Hole Size ﹢0.1 0 |
D | B | K | L |
| M4 | FH-FHBC-0420 | 0.5-2.0 | 11.0 | 6.0 | 5.9 | 9.0 | 1.0 | 15.0 |
| FH-FHBC-0440 | 2.0-4.0 | 17.0 | ||||||
| M5 | FH-FHBC-0525 | 0.5-2.5 | 13.5 | 7.0 | 6.9 | 10.0 | 1.0 | 18.0 |
| FH-FHBC-0540 | 2.5-5.0 | 20.0 | ||||||
| M6 | FH-FHBC-0630 | 0.5-3.0 | 17.0 | 9.0 | 8.9 | 12.7 | 1.5 | 23.0 |
| FH-FHBC-0650 | 3.0-5.5 | 25.0 | ||||||
| M8 | FH-FHBC-0835 | 1.0-3.5 | 19.0 | 11.0 | 10.9 | 16.0 | 1.5 | 26.0 |
| FH-FHBC-0855 | 3.5-5.5 | 29.0 | ||||||
| M10 | FH-FHBC-1040 | 1.0-4.0 | 25.0 | 13.0 | 12.9 | 19.0 | 2.0 | 33.0 |
| FH-FHBC-1060 | 4.0-6.0 | 1.8 | 35.0 |
