螺紋
Thread
|
編號
P/N
|

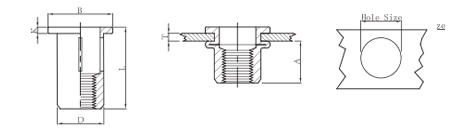

T(GRIP RANGE) Min Max |
A Ref |
Hole Size +0.1 |
D +0.07 -0.1 |
B | K | L |
| M5 | FH-SQB-0515 FH-SQB-0530 |
0.5-1.5 1.5-3.0 |
8 | 7.0 | 6.9 | 10.5 | 0.6 0.6 |
11.2 12.7 |
| M6 | FH-SQB-0625 FH-SQB-0640 |
0.5-2.5 2.5-4.0 |
8.5 9.5 |
9.0 | 8.9 | 14.0* | 0.8* 0.8* |
14.3 17.2* |
| M8 | FH-SQB-0830 | 1.0-3.0 | 11.5 | 11 .0 | 10.9 | 17.5* | 1.3* | 18.6* |
