螺紋 Thread |
編號
P/N
|

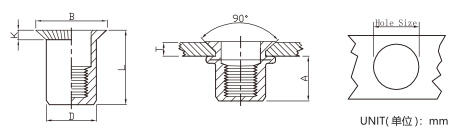

T(GRIP RANGE) Min Max |
A Rer |
Hole Size ﹢0.1 0 |
D | B | K | L |
| M4 | CH-RBC-0430 | 1.5-3.0 | 12.3 | 6.0 | 5.9 | 9.0 | 1.5 | 17.5 |
| M5 | CH-RBC-0535 | 1.5-3.5 | 14.0 | 7.0 | 6.9 | 10.0 | 1.5 | 19.5 |
| M6 | CH-RBC-0640 | 1.5-4.0 | 17.5 | 9.0 | 8.9 | 12.0 | 1.5 | 23.5 |
| M8 | CH-RBC-0840 | 1.5-4.0 | 20.0 | 11.0 | 10.9 | 14.0 | 1.5 | 26.5 |
| M10 | CH-RBC-1045 | 1.5-5.0 | 21.5 | 13.0 | 12.9 | 16.0 | 1.5 | 30.0 |
