螺紋
Thread
|
編號(hào)
P/N
|

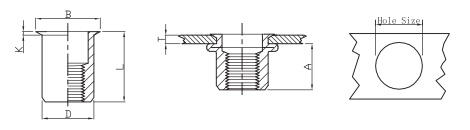

?T(GRIP RANGE) Min Max |
A Rer |
Hole Size +0.1 0 |
D +0.07 -0.1 |
B | K | L |
| M4 | RH-RB/AL-0420 | 0.5-2.0 | 6.0 | 6.0 | 5.9 | 7.0 | 0.5 | 10.5 |
| M5 | RH-RB/AL-0520 | 0.5-2.0 | 7.5 | 7.0 | 6.9 | 8.0 | 0.5 | 11.5 |
| M6 | RH-RB/AL-0625 | 0.5-2.5 | 9.2 | 9.0 | 8.9 | 10.0 | 0.6* | 14.0* |
| M8 | RH-RB/AL-0825 | 0.5-2.5 | 10.2 | 11 .0 | 10.9 | 12.0 | 0.65* | 15.5* |
| M10 | RH-RB/AL-1030 | 1.0-3.0 | 11.5 | 13.0 | 12.9 | 14.1 | 0.7* | 17.7* |
